DOF Craft 5X DC with Disc Changer/Loader
$79,000.00
Built in PC, Compressor, Dust Extractor, and Water Pump
CRAFT can be installed anywhere without space restriction.
Easy set-up and maintenance
Package Includes Hyperdent Compact CAM with Glass Ceramic Module
3 year Manufacturer Warranty
O and C Clamp 98MM Puck Adaptor

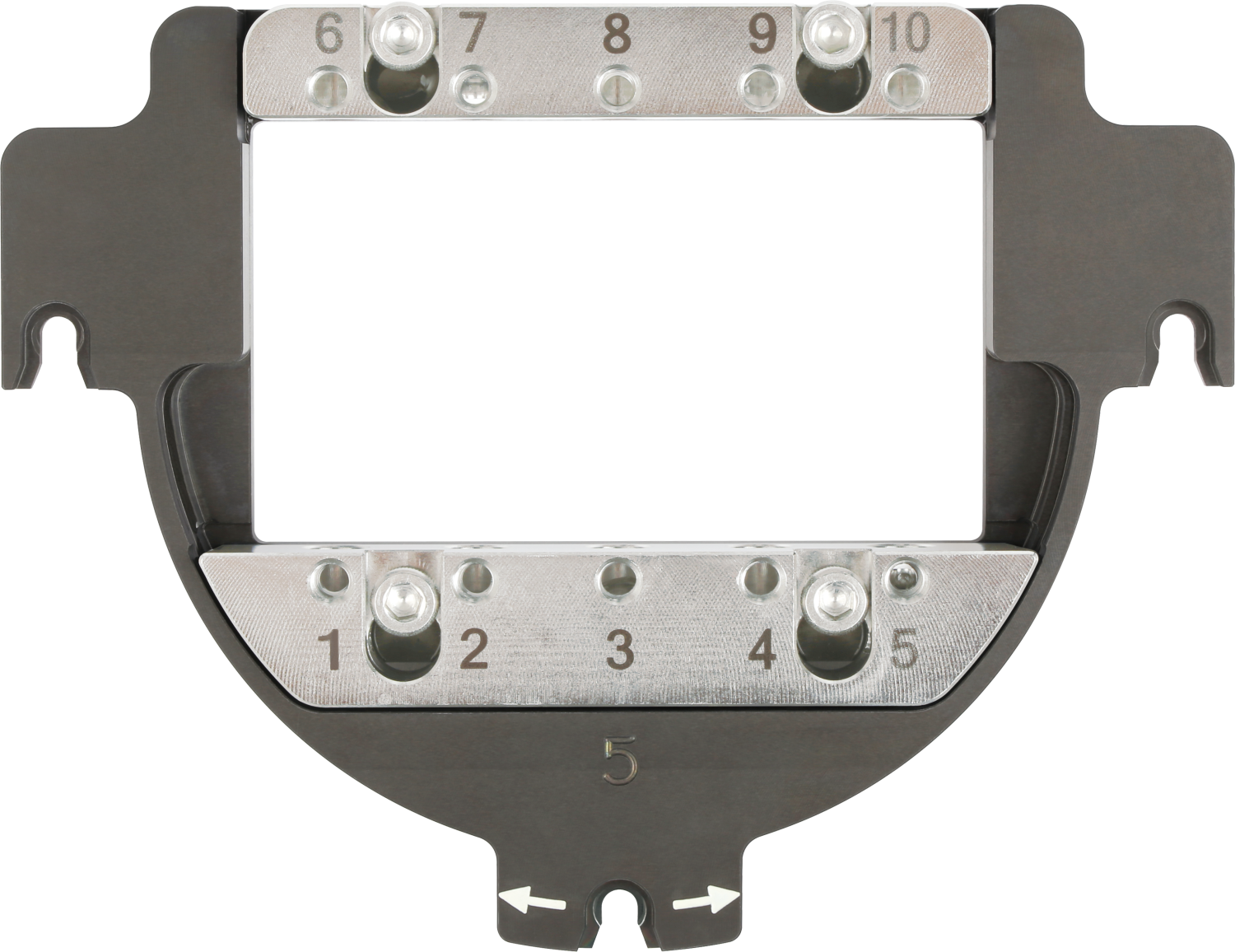

Premill abutment Jig for DESS abutments

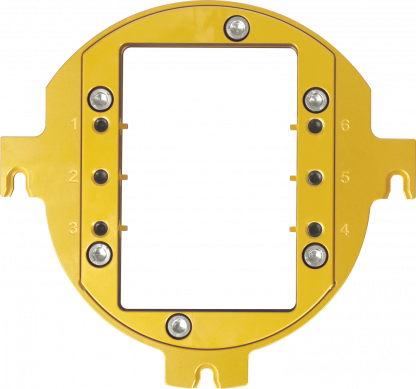

Glass Ceramic Jig for CEREC style CADCAM Blocks
Starter kit with 1 of each tool
On site installation and 2 complete days of workflow training included
unlimited Remote CAM and workflow training
Additional Information
This package includes everything you need to get started
- Pro Install and in-office training for 2 days
- unlimited remote workflow and technical support from CAD-Ray
- 3 year warranty
- Hyperdent Compact Cam
- Tool Starter kit (one of each tool)
- Puck Holder
- Glass Ceramic (CEREC) holder
- Dess Premill Titanium Abutment holder

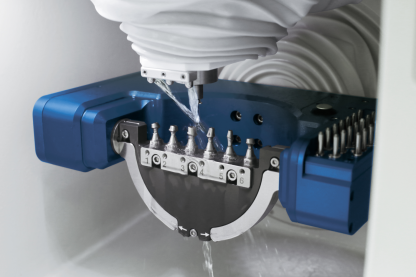

5-Axis Simultaneous Milling Machine
It mills on X, Y, Z axis and rotating blocks and discs 360 degrees in both clockwise and counterclockwise movements. 5-axis milling always allows excellent fits without restrictions on shapes of prostheses

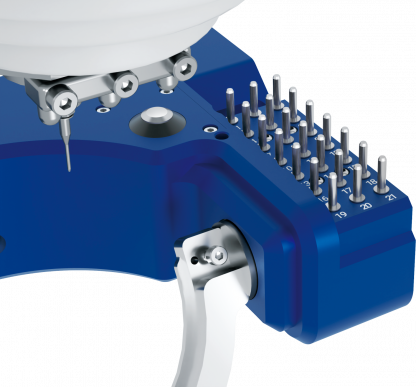

Tool Positions and Identification
One Step Milling

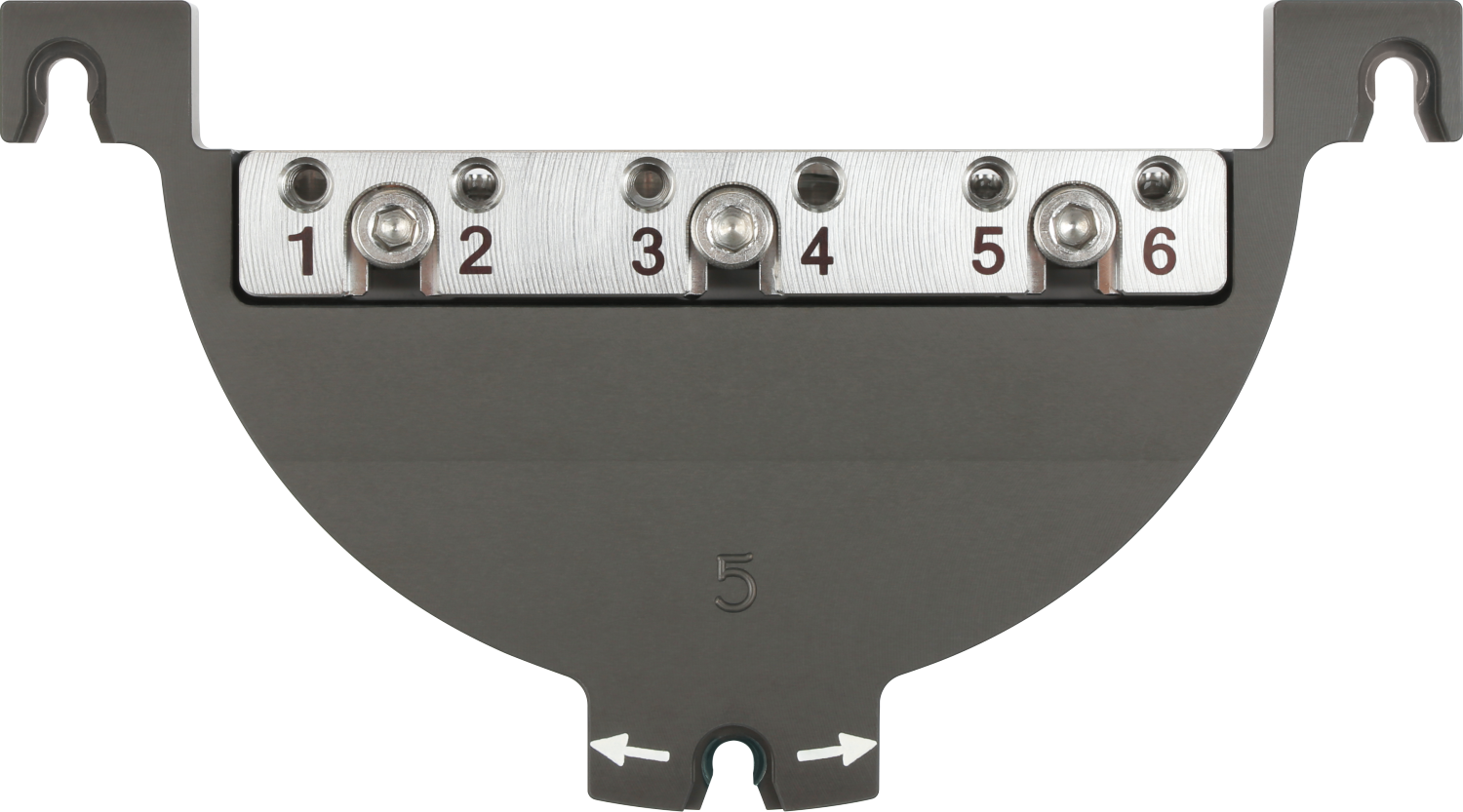

Everyone thought one-step milling was impossible, but now experience it with CRAFT 5X. CRAFT 5X extends beyond mechanical limitations of conventional milling machines and reproduces your design as it is. One-step milling is complete by producing the abutments and the suprastructures simultaneously with the 5-axis reverse milling method.
While conventional custom abutment production goes through complex stages of designing, milling, and scanning the abutment, one-step milling reduces the production stages by milling the abutment and the suprastructure at the same. Save your time more than one day through milling the abutment during sintering the zirconia bridge. It also improves the accuracy by preventing errors that may occur during scanning.
High Quality Spindle
Durable Jäger spindle, which features up to 100,000 RPM and maximum power of 0.7kw, can mill hard materials stably.
5-Axis Simultaneous Milling Machine
It mills on X, Y, Z axis and rotating blocks and discs 360 degrees in both clockwise and counterclockwise movements. 5-axis milling always allows excellent fits without restrictions on shapes of prostheses
Onboard Computer
A touch screen and a built-in computer are equipped. The machine control software has an intuitive user interface that anyone can easily use.
Sturdy & Low-Vibration Compatible Milling
Regardless of its compact size, the internal structure of steel components deliver optimal milling speeds with low-vibration for precise milling.
Wet & Dry Compatible Milling
Choose between a dry type and a wet type depending on the material. In addition, waterproof sealing protection increases machine longevity. Included in Starter Kit are the C-Clamp and the O-Clamp
